FLEX "ORE 5-150 EC 230/CEE" 5mm Random Orbital Sander Ø150mm 1 Stück

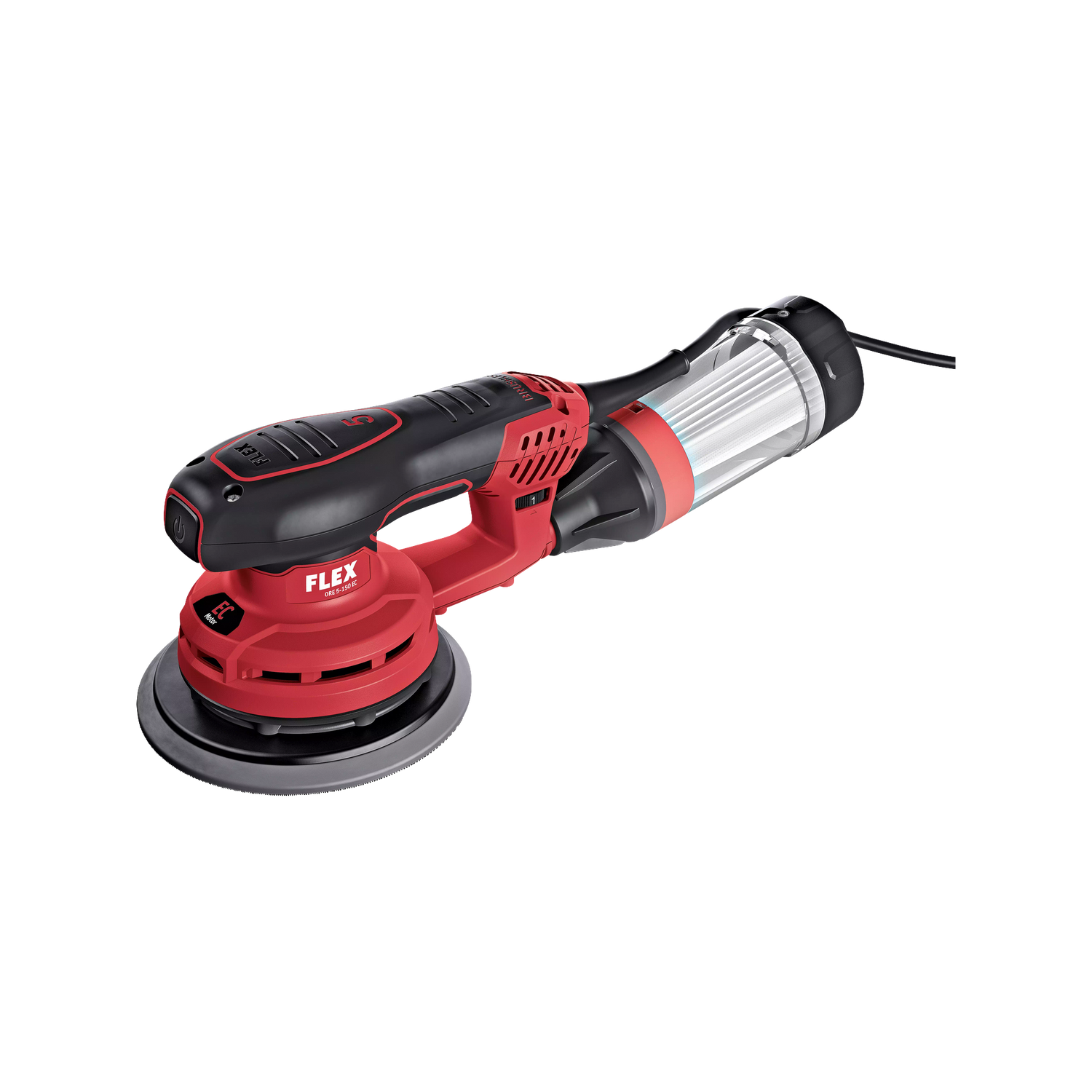

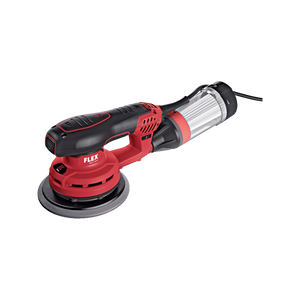

Random Orbital Sander with 5mm Orbit, Pad Brake, and Brushless Motor — FLEX ORE 5-150 EC 230/CEE

What is the FLEX ORE 5-150 EC 230/CEE? The FLEX ORE 5-150 EC 230/CEE is a 400-watt random orbital sander with Ø150mm, 5mm orbit, brushless motor, pad brake, and stepless speed control — the high-throughput sanding tool for filler sanding, primer sanding, and fast material removal in body shops.

Those who sand fillers and primers daily in body shops and require fast material removal on large surfaces opt for the 5mm orbit. The FLEX ORE 5-150 EC 230/CEE random orbital sander is designed precisely for this: the 5mm orbit generates more material removal per revolution than tighter orbit formats — this means shorter sanding times for filler and primer work, fewer passes for the same removal volume, and more productive use of working time. Combined with a brushless 400-watt motor, stepless speed control between 8,000 and 20,000 min⁻¹, and the pad brake against sanding marks, the ORE 5-150 EC is the fully equipped professional sanding tool for daily body shop operations.

• 5mm Orbit — Maximum material removal for fillers and primers. The ORE 5-150 EC's 5mm orbit sands more aggressively than 3mm models and is the more productive choice for all rough sanding tasks. Fillers, primers, rough sanding repairs — these are areas where fast material removal determines throughput. With the 5mm orbit, the sanding volume per unit of time is measurably higher than with a tighter orbit, which means a significant time advantage when working on several vehicles daily.
• Pad Brake — Active stop protection against unwanted sanding marks. The ORE 5-150 EC's pad brake engages immediately when the sanding pad is lifted from the surface, actively stopping the Ø150mm disc. Without a brake, the pad would briefly overrun and create sanding marks on the surface if set down carelessly. Especially with the 5mm orbit, which sands more aggressively than tighter formats, the braking function is a direct quality safeguard — every prevented sanding mark is prevented rework.
• Brushless Motor — High efficiency, low-maintenance continuous operation. The ORE 5-150 EC's brushless motor operates without carbon brush wear and delivers its 400 watts consistently and efficiently. This means: lower energy consumption for the same performance, no performance drop during operation, no brush changes, and no operational failures due to brush wear. For workshops with intensive continuous operation, this is the relevant difference compared to conventional brushed sanders.

Practical tip from Detailing1: Use the ORE 5-150 EC for filler sanding with P120–P180 grit at medium speed and move evenly across the surface — the 5mm orbit works most uniformly when the pressure is kept constant. Never sand too long in one spot: the aggressive orbit can quickly sand too deeply on edges and beads. Always use the external Ø27mm dust extraction connection — filler sanding generates a lot of dust, which drastically reduces abrasive life and contaminates the sanding pattern without extraction.

ORE 5-150 EC — 5mm Orbit, Sanding Kinematics, and Brushless Motor in Detail

The 5mm orbit of the FLEX ORE 5-150 EC 230/CEE describes the size of the eccentric circular path that the sanding pad performs in addition to its own rotation. Five millimeters is a tried and tested dimension for body shop rough sanding: large enough for efficient material removal, small enough for a controllable sanding pattern without coarser traces. Compared to devices with an 8mm or 12mm orbit (industrial class), the 5mm orbit is the more practical format for body surfaces and paint finishes — it combines throughput and controllability in a balanced ratio.

The brushless motor technology (BLDC) in the ORE 5-150 EC handles commutation electronically instead of mechanically. This eliminates the most common cause of wear in power tools and allows for more precise speed control: the electronics can regulate the motor speed faster and more finely than mechanical systems. In practice, this is noticeable as a smoother running pattern — no speed fluctuations when changing pressure, no power drop under high load.

The pad brake is particularly relevant in the ORE 5-150 EC because the 5mm orbit sands more aggressively than tighter formats. If a sanding tool with high material removal overruns briefly when put down, clearly visible sanding marks appear at the point of contact, requiring rework. The pad brake reliably prevents this scenario: the pad stops immediately when lifted — no overrunning, no uncontrolled sanding contact, no sanding damage when repositioning on the surface.

The 1.4 kg weight of the ORE 5-150 EC is exceptionally low for a mains-powered sander of this performance class. During intensive sanding days with multiple vehicles, weight is a directly noticeable factor: a heavy tool tires faster, reduces precision during guidance, and increases the risk of uneven pressure. The light weight of the ORE 5-150 EC gives the user more control over sanding quality — even at the end of a long workday.

The special balancing of the ORE 5-150 EC reduces vibration exposure (HAV — Hand-Arm Vibration) to a minimum for this tool class. For professional sanding operations that work for several hours daily with the same tool, vibration measurement according to the EU Machinery Directive is a relevant occupational safety aspect. Lower vibration means longer daily operating time without exceeding limit values and reduces the cumulative strain on hand and arm joints over the years.

Stepless Speed Control 8,000–20,000 min⁻¹ — The Right Sanding Speed for Every Step

The stepless speed control of the FLEX ORE 5-150 EC 230/CEE allows for fine adjustment of sanding speed between 8,000 and 20,000 min⁻¹ without fixed steps. This gives the user complete control over material removal: low speeds for gentler sanding and for transition areas, medium speeds for the main work on filler, high speeds for maximum throughput on large flat areas.

The constant speed electronics of the ORE 5-150 EC maintain the set speed even under varying pressure. When sanding filler on uneven surfaces — for example, when transitioning from a high point to a bead — the actual pressure of the sanding pad on the surface varies. Without constant speed, the orbit count would drop at such points and produce an uneven sanding pattern. The ORE 5-150 EC's electronics compensate for these load changes and maintain a uniform sanding pattern across the entire surface.

A practical aspect of stepless control: it allows for "breaking in" fresh sandpaper. When a new sanding sheet is placed on the hook-and-loop pad, the grit is sharp at first and the removal is high. Some users start at a lower speed and increase it over time — this creates a more even removal behavior over the life of the sandpaper.

For body shop rough sanding, it is recommended to switch from P80 (coarse removal on thick-layer filler) to P120 to P180 (normal filler and primer) in successive grit steps. The ORE 5-150 EC with 5mm orbit is suitable for all these stages — the sanding pattern becomes smoother with finer grit, and at the end of the filler sanding, with P240–P320 grit, a clean finish can be achieved, ready for subsequent clear coat sanding.

The 4m connection cable and tool attachment ensure unrestricted freedom of movement in the workshop. With the combination of a 4m cable and an attached 3.5m suction hose from a workshop vacuum cleaner, a complete vehicle circumnavigation from a fixed location is possible without repositioning the vacuum or extension cable.

Dust Extraction and Abrasives — Self-Extraction, External Connection, and Hook-and-Loop Sanding Pad

The integrated self-extraction of the ORE 5-150 EC 230/CEE with a shock-resistant PES microfilter cartridge keeps the work surface clean during moderate dust levels. For filler and primer sanding, where significant amounts of dust are generated in a short time, self-extraction alone is not sufficient — here, the external Ø27mm dust extraction connection is the right solution: an attached workshop vacuum cleaner collects dust directly at its source.

The economic advantage of consistent dust extraction during sanding is considerable: sandpaper that works in its own sanding dust quickly clogs and loses cutting performance. With extraction, abrasive life can be extended two to three times. The investment in a good vacuum cleaner and the regular use of the Ø27mm connection quickly pays for itself through savings in abrasive consumption.

The multi-hole system of the Ø150mm hook-and-loop sanding pad included in the scope of delivery enables wide abrasive compatibility. Standard sanding sheets with 150mm hook-and-loop and multi-hole from all reputable abrasive manufacturers fit without an adapter. The hook-and-loop system allows for sanding sheet changes in seconds, without tools — relevant in sanding operations where the grit is changed several times a day.

Comparing FLEX ORE 5-150 EC vs. ORE 3-150 EC and ORE 5-150 18-EC C — which tool for whom?

The ORE 5-150 EC 230/CEE and the ORE 3-150 EC share almost identical equipment data — brushless motor, pad brake, stepless control, Ø150mm — but differ fundamentally in sanding orbit. The 5mm orbit of the ORE 5-150 EC is optimized for rough sanding, filler sanding, and fast material removal. The 3mm orbit of the ORE 3-150 EC is designed for finishing sanding, clear coat preparation, and a fine sanding pattern. In a fully equipped body shop, both types belong to the tool park — not as alternatives, but as complements for different sanding phases.

For workshops that can only purchase one model, the rule of thumb applies: Those who primarily sand fillers and primers → ORE 5-150 EC. Those who primarily do clear coat preparation and polishing preparation → ORE 3-150 EC. Those who do both equally benefit most from both tools, as the investment in the second device can quickly be accounted for through saved rework (by forgoing the more precise 3mm orbit) and saved time (by forgoing the more productive 5mm orbit).

The battery-powered alternative is the FLEX ORE 5-150 18-EC C on the FLEX 18V platform. This offers the same Ø150mm-5mm orbit format without a power cord — for mobile applications, outdoor work, and cable-free workflows in the workshop. Those who already have FLEX 18V batteries can integrate the ORE 5-150 18-EC C into their existing fleet without additional battery investment. For intensive continuous work over several hours, the mains-powered ORE 5-150 EC remains the more power-stable solution — no charging interruptions, no performance drop with decreasing battery charge level.

Buy FLEX ORE 5-150 EC 230/CEE — The High-Throughput Sander for Filler, Primer, and Rough Sanding

The FLEX ORE 5-150 EC 230/CEE is the right choice for body shops and detailers who prioritize maximum throughput for rough sanding — without compromising on safety features like the pad brake and brushless motor. Brushless 400-watt motor, 5mm orbit, stepless speed control, pad brake — this is the complete profile of a professional tool for daily intensive sanding operations.

The external Ø27mm dust extraction connection should always be used in the body shop. The right combination: ORE 5-150 EC with an attached FLEX safety vacuum cleaner of the appropriate capacity class. The sander works productively, the vacuum keeps the surface clean — this is the professional working environment that protects both sanding quality and employee health.

For businesses that want to implement a clear distinction between rough sanding and finishing sanding, the ORE 5-150 EC and the ORE 3-150 EC provide two dedicated tools for these two phases. This distinction has several advantages in professional body shops: different abrasives can remain on their respective pads, switching between phases is faster, and the risk of accidentally working in finishing sanding with a 5mm orbit device and removing too much material is eliminated. Clear tool assignment makes the quality standard in the business reproducible — regardless of which employee is working on the vehicle.

Included in delivery: medium hook-and-loop sanding pad, PES microfilter cartridge (486833), and hexagon socket wrench. The OSE 2-70x198-EC is a useful addition for edges, pillars, and geometrically demanding areas where the round 150mm pad of the ORE 5-150 EC does not lie optimally. Both tools together fully cover all typical sanding situations in the body shop.
