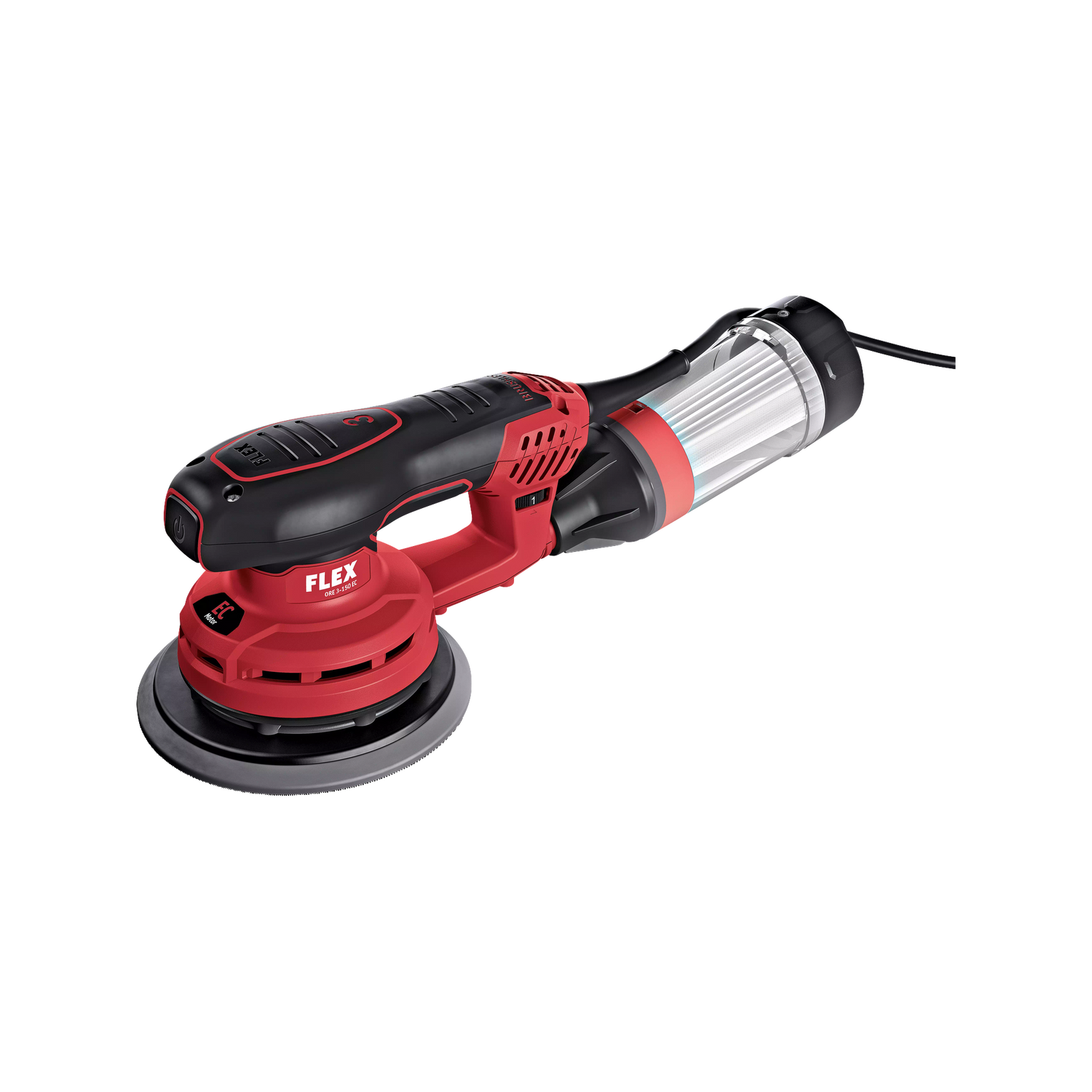

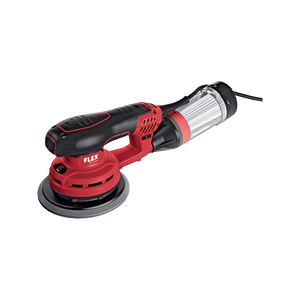

FLEX "ORE 3-150 EC 230/CEE" 3mm Random Orbital Sander Ø150mm 1 Stück

Orbital sander with 3mm orbit, pad brake and brushless motor — FLEX ORE 3-150 EC 230/CEE

What is the FLEX ORE 3-150 EC 230/CEE? The FLEX ORE 3-150 EC 230/CEE is a 400-watt random orbital sander with Ø150mm, 3mm orbit, brushless motor, pad brake and stepless speed control — the precise paint sanding tool for bodywork and vehicle detailing.

An orbital sander with a 3mm orbit is the tool for all sanding tasks where the sanding pattern must not leave any marks at the end of the process. The FLEX ORE 3-150 EC 230/CEE combines a brushless 400-watt motor, stepless speed control between 8,000 and 20,000 min⁻¹ and a pad brake that immediately stops the Ø150mm sanding pad after lifting. The result: clean, sanding mark-free sanding on clear coat surfaces, fillers, and primers — with a 1.4 kg tool that can be guided for hours without fatigue.

• 3mm orbit — the ideal sanding stroke for clear coat and fine sanding. The 3mm orbit of the ORE 3-150 EC produces a finer sanding pattern than models with a 5mm orbit. Less orbit means less material removal per revolution, a more uniform scratch pattern, and a sanding result that leaves no visible sanding marks after polishing. For clear coat preparation, fine filler sanding, and preparation for polishing, the 3mm orbit is the more precise choice compared to more aggressive formats.
• Pad brake — no sanding after lifting the tool. The pad brake of the ORE 3-150 EC actively stops the Ø150mm sanding pad as soon as the user lifts the tool from the surface. Without a pad brake, the pad would continue to run briefly and leave uncontrolled sanding marks when set down. The pad brake makes this problem a thing of the past — the tool is already stationary the moment it is lifted. On sensitive clear coat surfaces, this is a direct protection against work errors.
• Brushless motor with 400 watts — constant power without brush wear. The brushless motor of the ORE 3-150 EC delivers its 400 watts without mechanical wear from carbon brushes. In the long term, this means: longer service life, lower operating costs, no power drop during the service life. For workshops that use the sanding tool daily, this is a relevant difference compared to brushed models — fewer failures, no brush changes, consistent performance over the entire machine life.

Practical tip from Detailing1: When sanding clear coat with the ORE 3-150 EC, always start with the lowest speed setting and only increase to the working speed after the sandpaper has been run in. The pad brake works best when the pad is lifted vertically from the surface — tilting during lifting reduces the braking effect. Always use the external Ø27mm dust extraction connection: the integrated dust extraction alone is not sufficient for filler sanding to keep the surface and sandpaper clean.

ORE 3-150 EC — brushless motor, pad brake and sanding kinematics in detail

The combined eccentric and rotational movement of the FLEX ORE 3-150 EC 230/CEE is the characteristic feature of all random orbital sanders: the sanding pad not only rotates around its own axis but also simultaneously describes an eccentric circular path. This creates a sanding pattern that distributes and smears the circular marks of the sandpaper instead of concentrating them in one direction. The result is a significantly finer sanding pattern than with pure rotary sanders — relevant for all work where the sanding pattern subsequently needs to be polished.

The brushless motor of the ORE 3-150 EC operates according to the BLDC principle (Brushless DC): instead of mechanical sliding contacts, commutation is electronic. This eliminates the most common cause of failure in power tools and makes the motor significantly more maintenance-friendly. In practice, this manifests itself in constant speed under varying pressure, higher energy efficiency, and longer thermal comfort — the motor heats up less under the same use than a comparable brushed drive.

The pad brake is a feature that is not self-evident in sanders of this class but makes a decisive difference for precise paint sanding. When the user lifts the sanding pad from the surface, the brake stops the pad immediately. In practice, this means: no accidental sanding contact when repositioning the tool, no sanding marks when setting down on a fresh spot, no sanding marks on edges and transitions. Especially in the clear coat area, where every uncontrolled contact creates a repair spot, the pad brake is a real productivity gain.

The vibration- and fatigue-reducing design through special balancing reduces the vibration load on the user. In professional sanding work that lasts several hours a day, this is not only a comfort feature but also an occupational safety aspect. The balancing optimization of the ORE 3-150 EC extends the daily permissible operating time and reduces the cumulative fatigue load over a long working day. At 1.4 kg, the device is exceptionally light for a corded sander of this performance class — which is noticeable after the third vehicle of the day.

8,000–20,000 strokes per minute steplessly — speed control of the ORE 3-150 EC in practice

The stepless speed control of the ORE 3-150 EC 230/CEE allows for sensitive adjustment of the sanding speed to the respective material and work step. Low speeds for delicate clear coat surfaces and the final sanding pass before polishing, medium speeds for normal filler sanding, high speeds for coarse material removal on primers and thick-layer fillers.

The advantage of stepless control over 4-stage control lies in continuous adjustment: the user can smoothly adjust the speed when transitioning from one sanding area to the next, instead of switching between fixed stages. In transition areas — for example, when sanding from a flat surface to a curve — this allows for more consistent sanding quality without abrupt speed changes. The constant speed electronics keep the set speed constant even with varying pressure, which is particularly relevant on curved surfaces.

The 4m power cable provides sufficient reach for a complete vehicle circulation from a fixed location. In conjunction with the 1.4 kg weight — lighter than many comparable sanders in this performance class — the result is a well-balanced tool that does not excessively strain the hand even during several hours of work. In combination with stepless control and the pad brake, the ORE 3-150 EC is thus optimally designed for the requirements of professional body and paint repair shops.

Dust extraction and abrasives — integrated dust extraction, external connection and abrasive selection

The integrated dust extraction system of the FLEX ORE 3-150 EC 230/CEE with PES microfilter cartridge keeps the work area clean with moderate dust levels. The microfilter cartridge included in the scope of delivery (486833) is specially designed for fine sanding dusts and collects particles before they land on the surface and distort the sanding pattern with scratches. For occasional use and outdoor sanding where no hose can be laid, the integrated dust extraction is the practical standby solution.

For intensive sanding work in the body shop — especially during filler sanding and primer sanding, where significant amounts of dust are generated in a short time — the external Ø27mm dust extraction connection should always be used. A connected workshop vacuum cleaner reliably keeps the sanding surface clear, significantly extends the abrasive life, and protects employees from dust exposure. The abrasive life with a connected vacuum cleaner is about twice as long compared to uncontrolled dust work — an economic advantage that quickly justifies the investment in a good workshop vacuum cleaner.

The Ø150mm hook-and-loop sanding pad included in the scope of delivery (464120) is characterized as "medium" — a medium hardness suitable for most paint sanding and filler sanding applications. For specific applications — very soft paints, very hard fillers — soft and hard pads are available as accessories. The hook-and-loop system allows for quick changing of sandpaper without tools, reducing grit changes during operation to seconds.

Comparison FLEX ORE 3-150 EC vs. ORE 5-150 EC and OSE 2-70x198-EC — which tool for which task?

The most important deciding factor between ORE 3-150 EC and ORE 5-150 EC is the orbit: 3mm vs. 5mm. Both have the same Ø150mm format, the same brushless motor, and comparable performance data — but the orbit crucially determines the sanding pattern and the application area. The ORE 3-150 EC with 3mm sands finer, gentler, and with less material removal per revolution. This is the right choice for clear coat sanding, fine filler preparation, and all work directly before polishing. The ORE 5-150 EC with 5mm sands more aggressively and is better suited for coarser filler sanding, priming work, and fast material removal.

For body shops that perform both coarse filler sanding and fine finishing sanding, both tools are useful — not as alternatives, but as complements. The best practice: ORE 5-150 EC for pre-sanding, ORE 3-150 EC for final sanding before polishing. If you only have one tool, you should orient yourself towards the most frequent work step: fine sanding and polishing preparation → ORE 3-150 EC; intensive material removal → ORE 5-150 EC.

In addition to the round Ø150mm format of the ORE 3-150 EC, the OSE 2-70x198-EC orbital sander is a sensible addition for edges, pillars, door cutouts, and all geometric areas where a round sanding pad does not lie ideally. The FLEX sander line is designed as a system — ORE for surfaces and curves, OSE for edges and geometries — and both types complement each other in everyday workshop life without overlap.

Buy FLEX ORE 3-150 EC 230/CEE — the sander for precise paint sanding without sanding marks

The FLEX ORE 3-150 EC 230/CEE is the first choice for anyone who values a precise, mark-free sanding pattern in bodywork and detailing. Brushless motor, pad brake, stepless speed control — this is the complete equipment for professional clear coat and filler sanding with a Ø150mm sanding pad.

The pad brake is the feature that sets this device apart in its class: there are few sanders in this price segment that offer an active braking function. For workshops that work daily on clear coat surfaces and rely on work quality without rework, this function quickly pays for itself — a single avoided sanding damage justifies the investment.

The scope of delivery with medium hook-and-loop sanding pad (464120), PES microfilter cartridge (486833), and hex key makes the ORE 3-150 EC ready for immediate use. The external Ø27mm dust extraction connection enables operation with a connected workshop vacuum cleaner for professional dust protection. Those looking for a cordless sander without a cable will find the corresponding solution on the FLEX 18V platform with the FLEX ORE 5-150 18-EC C.
